Description

Paying homage to Rim’s roots in BMX from such a young age, Subrosa had to support the next generation and offer a smaller bike that shares the same features as a park riding pro’s bike.

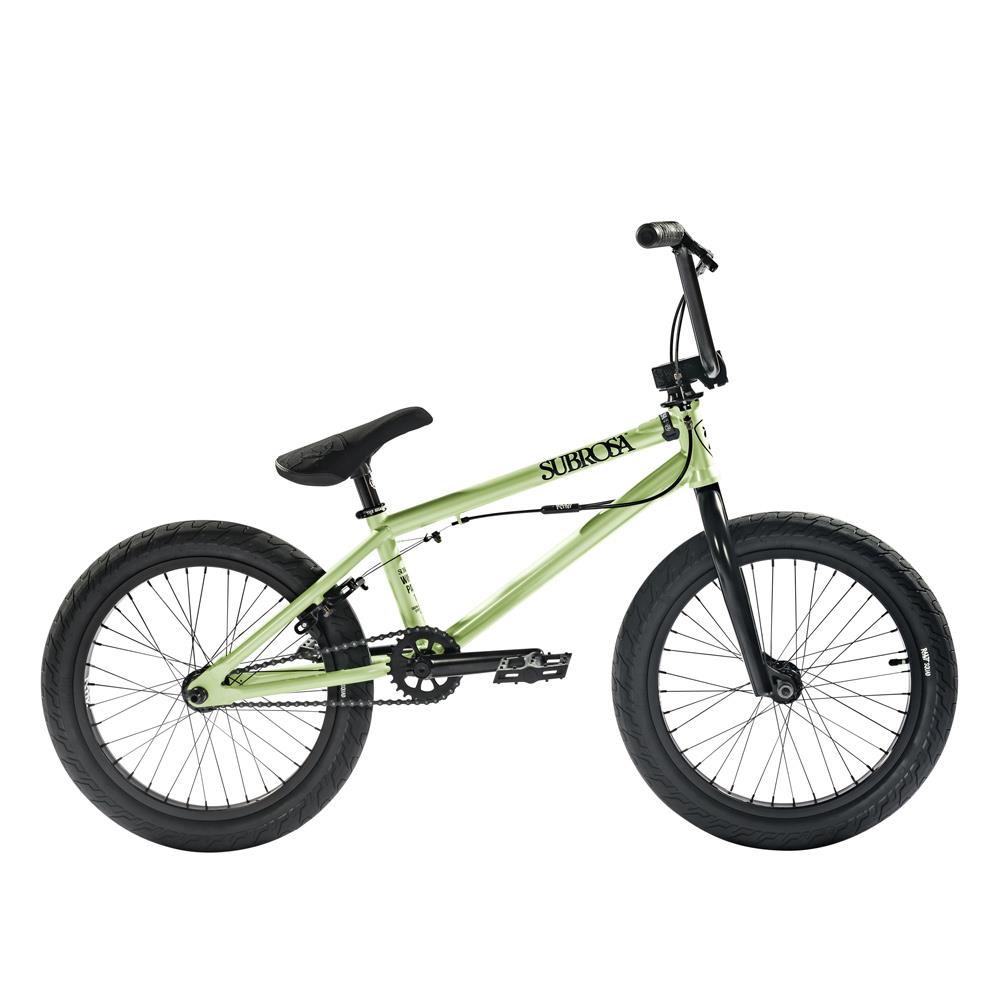

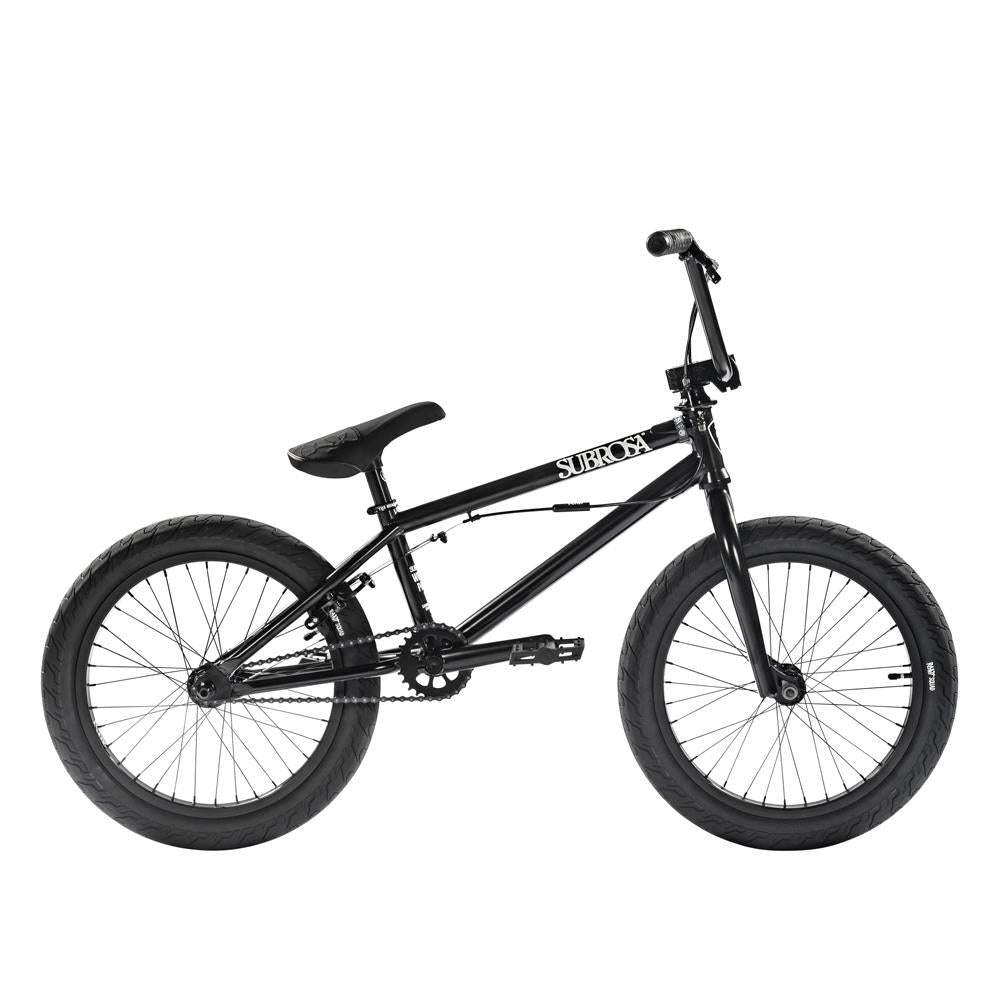

The Rim Nakamura signature Wings 18” is everything you need in a Park bike just designed with the younger rider in mind.

###section###

Product Specs

1. FRAME MATERIAL: 1020 Hi-Ten Steel

3. WHEEL SIZE: 18

5. TOP TUBE LENGTH: 17.5

7. CHAIN STAY LENGTH: 12.2

9. HEADTUBE ANGLE: 75°

11. SEAT TUBE ANGLE: 71°

13. FORKS: Chromoly Steerer Tube and Tapered Hi-Ten Legs

15. BARS:
    – MATERIAL: Hi-Ten
    – TYPE: 2-Piece
    – RISE: 7.75 Rise
    – WIDTH:

17. STEM: Alloy Front Load

19. HEADSET: Integrated

21. BRAKE MOUNTS: Welded Mount

23. BRAKES: U-Brake

25. FRONT HUB: 10mm Loose Ball

27. FRONT RIM: Single Wall

29. REAR HUB: 14mm Sealed Cassette

31. REAR RIM: Single Wall

33. TYRES: 2.3

35. SPROCKET: 25t

37. CRANKS:
    – MATERIAL: Chromoly
    – TYPE: 3-Piece
    – ARM LENGTH: 155mm

39. BB: 19mm Mid

41. PEDALS: Plastic

43. SEAT: Combo Seat Post

45. GEARING: 25-Sep

47. WEIGHT: 24.03lbs (10.9kg)

48. ###section###

    Product Highlights

    • A full size 20” wheel with smaller geometry to suit riders typically fitting a 18” wheeled bike (3 6 – 4’6” 105cm – 135cm)
    • Great for Riders who are just too small to handle a full size 20 BMX
    • Strong Hi-Ten steel construction
    • Geometry designed with the smaller rider in mind
    • Includes sealed bearings
